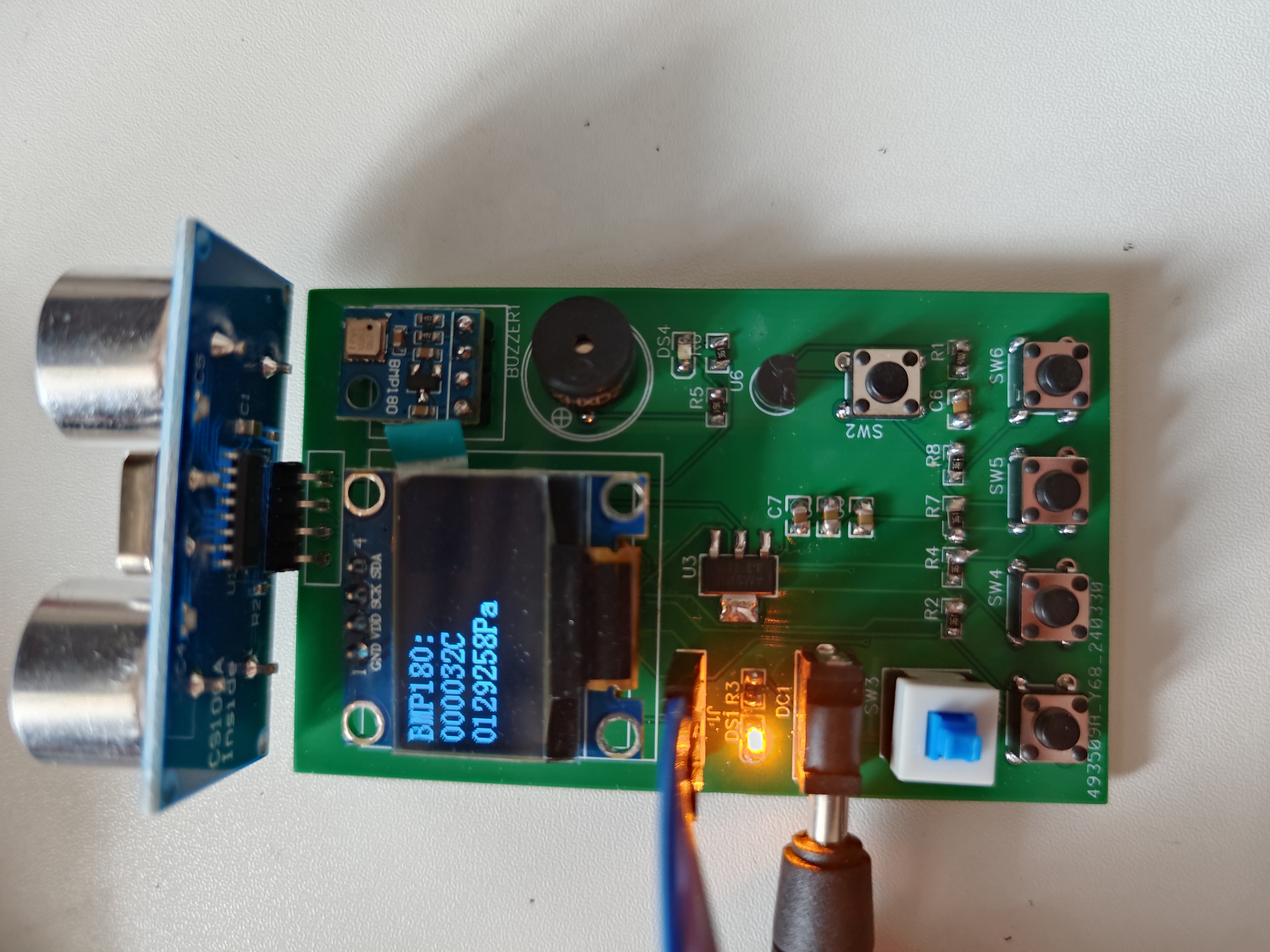

实物

main

csharp
展开代码
#include <msp430.h>
#include "stdio.h"
#include "OLED.h"
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <math.h>
// P2.2 oled scl
// P2.3 oled sda
// p1.0 bmp180 scl
// p1.1 bmp180 sda
// vcc 3.3v
// gnd gnd
#include "bmp180.h"
unsigned char disp[16];
unsigned char cnt = 0;
int main(void) {
    uchar test = 0;
    WDTCTL = WDTPW + WDTHOLD;
    if (CALBC1_8MHZ == 0xFF) {
        while (1);
    }
    DCOCTL = 0;
    BCSCTL1 = CALBC1_8MHZ;
    DCOCTL = CALDCO_8MHZ;
    OLED_Init();
    delay_ms(400);
    OLED_Init();
    BMP085_IIC_IOinit;
    delay_ms(50);                           //上电延时
    Init_BMP085();                //初始化BMP085
    test = Single_Read(0xd0);
    _EINT();
    while (1) {
        bmp085Convert();
        OLED_ShowString(0, 0, "BMP180:", 0);
        if (temperature >= 0) { //不满足这个条件的话，说明是负数，有可能是干扰
            cnt = 0;
            disp[cnt++] = temperature % 1000000 / 100000 + '0';
            disp[cnt++] = temperature % 100000 / 10000 + '0';
            disp[cnt++] = temperature % 10000 / 1000 + '0';
            disp[cnt++] = temperature % 1000 / 100 + '0';
            disp[cnt++] = temperature % 100 / 10 + '0';
            disp[cnt++] = temperature % 10 + '0';
            disp[cnt++] = 'C';
            disp[cnt++] = 0;
            OLED_ShowString(0, 2, disp, 0);
            cnt = 0;
            disp[cnt++] = pressure % 10000000 / 1000000 + '0';
            disp[cnt++] = pressure % 1000000 / 100000 + '0';
            disp[cnt++] = pressure % 100000 / 10000 + '0';
            disp[cnt++] = pressure % 10000 / 1000 + '0';
            disp[cnt++] = pressure % 1000 / 100 + '0';
            disp[cnt++] = pressure % 100 / 10 + '0';
            disp[cnt++] = pressure % 10 + '0';
            disp[cnt++] = 'P';
            disp[cnt++] = 'a';
            disp[cnt++] = 0;
            OLED_ShowString(0, 4, disp, 0);
        }
        delay_ms(200);
        delay_ms(200);
        delay_ms(200);
        delay_ms(200);
        delay_ms(200);
    }
}

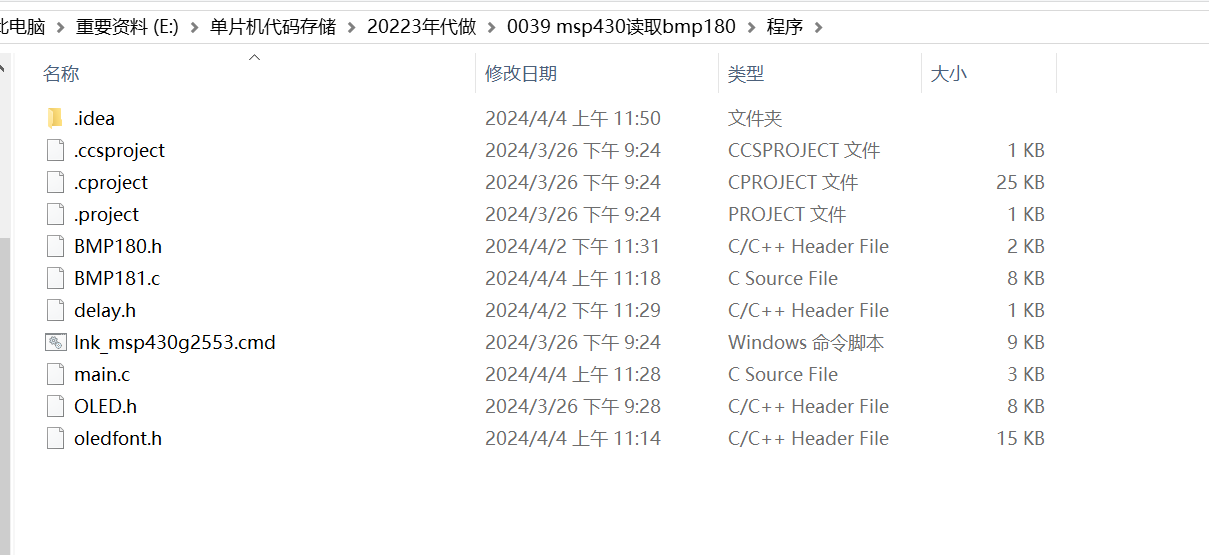

所有代码

这里获取：

csharp
展开代码
https://docs.qq.com/sheet/DUEdqZ2lmbmR6UVdU?tab=BB08J2
